Produkte für Ihren Bedarf an Pflege + Wartung
LanoCote ®: Rost- und Korrosionsschutzpaste
MareLube™: Langlebige Schmierung mit PTFE Bestandteilen
Tea Tree Power ®: Mittel zur Schimmel- unud Geruchsbeseitigung
mehr >>
Aus vorherigen 3 Flügeln der Propeller wurden nun 6 Flügel für mehr Leistung und einem geringeren Geräuschpegel. Der komplett mit einem Redesign versehene neue Max Power 185 mm Propeller ist ab sofort verfügbar. Der Unterschied zu seinem Vorgänger? Der neue Propeller ist 20% leiser und erreicht durch seine 6 Flügel mehr Druck im Wasser. Die Effizienz wurde um 5% verbessert.
mehr >>
Stufenlos einstellbarer Carbon Spibaum.
Forespar® hat gerade einen erschwinglichen, zweiteiligen Teleskop Kohlefaser -Spibaum vorgestellt. Dieser lässt sich mit einem einfachen Leinensystem schnell auf die gewünschte Länge einstellen.
mehr >>
SPARE AIR ist eine vollkommen unabhängige Luftversorgungseinheit für sofortige, sichere Aufstiege zur Wasseroberfläche.
mehr >>
SAILTEC führt das umfassendste Pumpenpanel Programm weltweit. Die passende Pumpe für jede Systemkonfiguration!
Pumps mounted on a panel and located in the cockpit, on the pedestal, near the rail(s), or on any bulkhead, can drive one or more cylinders located anywhere in the boat.
Generally, remote panel pumps result in less crew, more control, and faster cylinder action than integral pumps. They can be configured to push or pull rams for common applications such as backstays, vangs, forestays, outhauls, and many “uncommon” custom applications, such as manual swim platform cylinders, canting keels, mast jacks, and others.
Selection can depend on class rules, size, depth,weight, speed of operation, cost, and appearance. Sailtec produces a range of proven, durable, and reliable panel-mounted pumps that allow you to select a panel to balance the factors of size, speed, and cost with the needs of your boat.Other brands expect you to take their limited size, speed, and cost and find a place to install them.We believe the Sailtec panel selection is the broadest, smallest, fastest, most cost effective, and most durable in the industry.The high level of customer satisfaction, factory support, and nice appearance are bonuses.

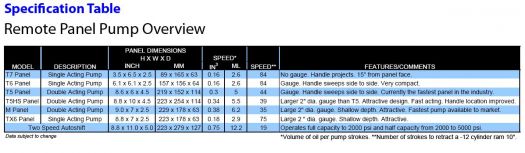

Schlecht lesbar? Download anklicken, dann haben Sie's perfekt ...
Download: datentabelle_zentralpumpen.jpg
Download: prospekt_zentralpumpen_ueberblick_2007_englisch.pdf
For remote pumps to control cylinders such as backstays, vangs, outhauls, forestays, etc., these double-acting pumps are faster, more economical, and easier to install than competitive models.
Features
The most popular combination of performance and economy
Double acting
Very fast — up to 5.0 ml/stroke
Small footprint
Self-purging of air, and self-priming
Proven durability
Easy to install
Create vacuum to lift oil one meter for hard to locate reservoirs
Configured to incorporate into 12 or 24 volt powerpak available
Construction
Aircraft-quality aluminum
Filtered intake from reservoir
Adjustable relief valve
Nearly flush gauges
Valves — zero leakage to 6000 psi
All panels come complete with handle, hardware, reservoir, and reservoir hose
The same rugged, reliable construction you have come to depend upon with the T5 Panel Pump, with numerous upgrades.
Features
New, attractive design
Double-acting, high efficiency
12% faster than T5 @ 5.6 ml/stroke
60% faster than most popular competing systems
Gauge — large, 2" diameter, easy to read, flush mount; all stainless steel case
5000 psi maximum pressure
Self purging of air, self priming
Easy to install
Create vacuum to lift oil one meter for hard to locate reservoirs
Configured to incorporate into 12 or 24 volt powerpak available
Construction
Aircraft-quality aluminum
Filtered intake from reservoir
Adjustable relief valve
Flush gauges, 2" diameter Type 316 stainless steel case
Valves — zero leakage to 6000 psi
All panels come complete with handle, hardware, reservoir, and reservoir hose.
These popular, single-acting hydraulic pumps provide a popular and economical option for remote cylinder control.
Features
Single-acting panel pump 2.6 ml/stroke
5000 psi
Small footprints
Shallow depth @ 2-1/2” (64 mm)
Economical
Construction
Aircraft-quality aluminum alloy
Filtered intake from reservoir
Adjustable relief valve
Recessed gauge — nearly flush
Valve — zero leakage to 6000 psi
All panels come complete with handle, hardware, reservoir, and reservoir hose.
Download: prospekt_zentralpumpen_t6-t7_2007_englisch.pdf
Download: sailtec_panel_pump_t6_2010.pdf
Especially designed for pedestals,where clearance can be a challenge. The M series pump’s weight and size permit installation in locations impossible to consider before.
Features
Unmatched speed
.375 in3 (6.15mm/stroke)
Compact — only 2.5" deep (62mm)
Attractive style
Large gauge with 2” diameter
All stainless steel gauge case
Create vacuum to lift oil one meter for hard to locate reservoirs
Configured to incorporate into 12 or 24 volt powerpak available
Construction
Aircraft-quality aluminum
Filtered intake from reservoir
Adjustable relief valve
2" diameter Type 316 stainless steel gauge case
Valves — zero leakage to 6000 psi
Redundant check valves
All panels come complete with handle, hardware, reservoir, and reservoir hose.
